In the left sidebar the imported samples are displayed, select one to browse the corresponding spectra. Generally, for each imported file (mzData, mzXML,..) a separate sample has been created. |
|

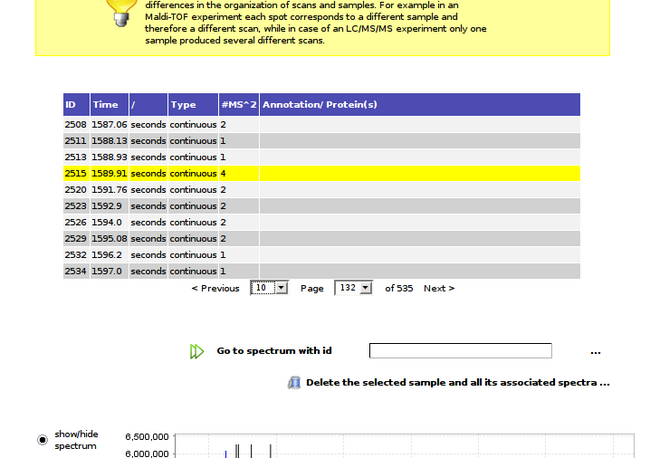

On the right side two lists of spectra will be displayed, when a sample has been selected. While the upper one lists MS level one spectra, ... |
|

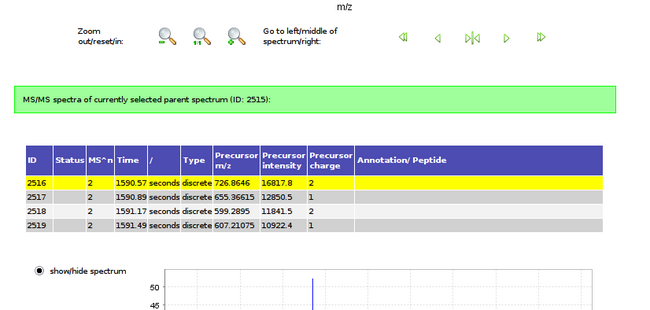

... the second list displays - if applicable - the child spectra (MS2, SIM, Zoom, etc.) associated to the selected MS1 scan. |
|

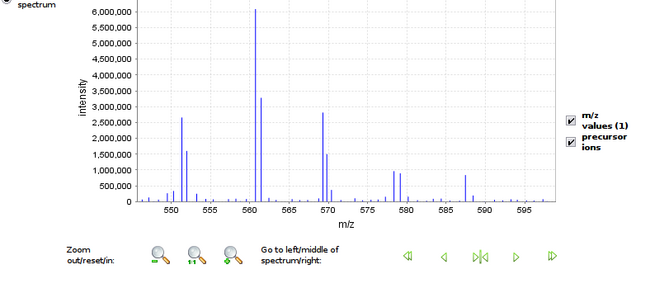

Buttons below the depicted peak lists provide zoom functionality. Checkboxes beside the spectrum allow to partly hide peak lists, for example to select only the precursor positions. |
|
When a spectrum is zoomed in, additional buttons are displayed to move in the m/z range. The "double arrow"-buttons allow fast scrolling; jump to the middle of the spectrum by clicking the "center" button. |
|
If MS level one spectra have been imported, which are derived from MALDI/TOF analysis, ProSE may display their positions on the target plate. |
